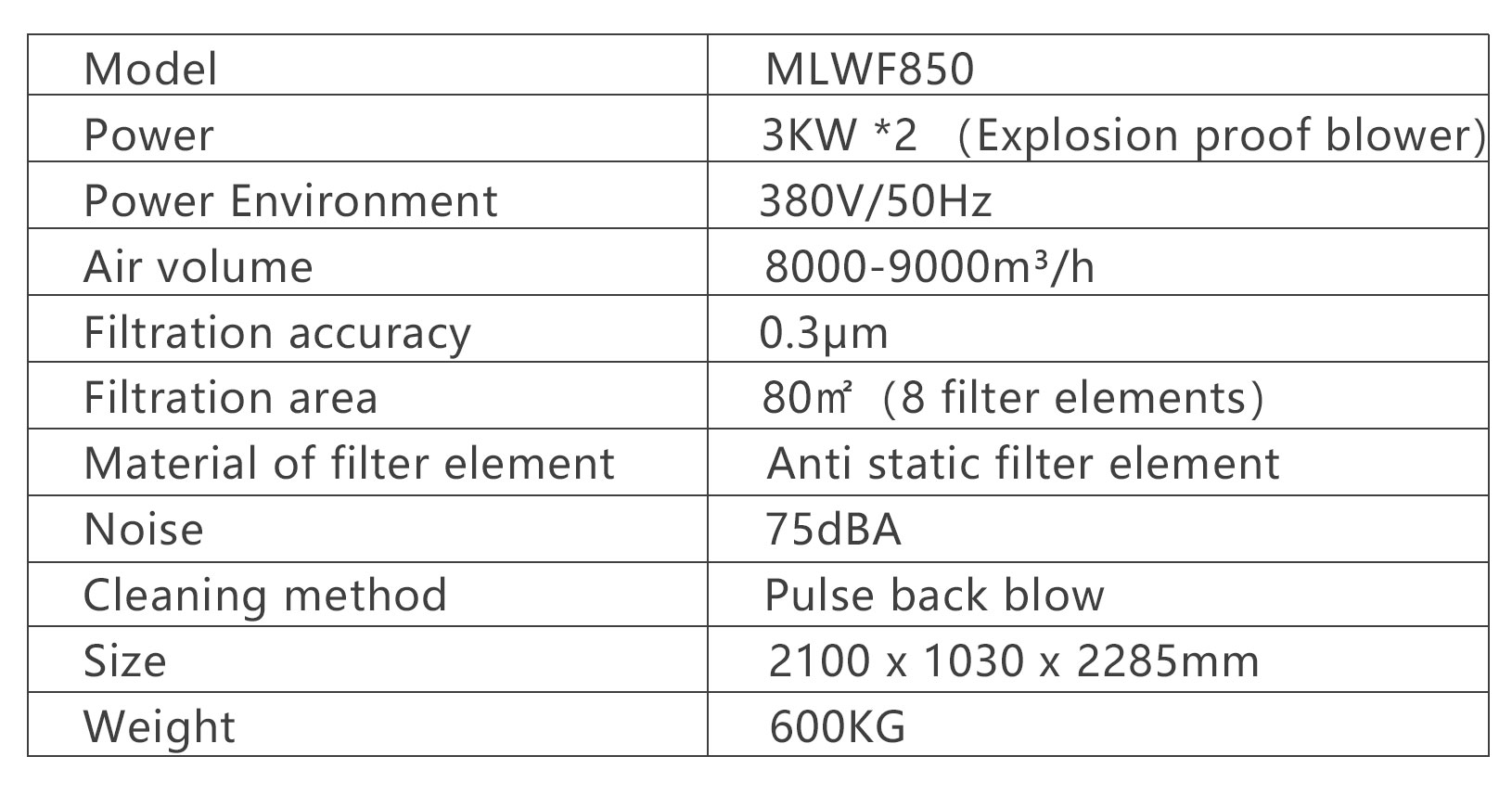

• Product parameters

  ---




  Product Profile

  ---

        Grinding dust removal cabinet is a kind of grinding dust treatment equipment designed and manufactured for whose working mode is downdraft, upper exhaust and inner circulation. It is equipped with mobile telescopic to form a grinding room. It is suitable for grinding and dust removal of large workpieces such as sheet metal and special-shaped workpieces. The grinding cabinet can be assembled freely according to the size of workshop and can meest the needs of various working conditions.

  Performance description


  ---

  · Integrative structure with small floor area.

  · Anti-suction device to make the effect of ash cleaning more thoroughly.

  · Power supply monitoring: Alarm of fault phase overvoltage and undervoltage to prevent motor and electrical components from     damage.

  · Pressure  monitoring: Alarm for low pressure to prevent incomplete dust cleaning.

  · Pressure differential gauge shows the working state of filter element and automatic pulse back blowing of excessive     pressure difference.

  · Operation temperature monitoring: Alarm system of high temperature to prevent fire




  Standard configuration

  ---

  · Filtration efficiency (> 99.7%) (imported explosion-proof coated polyester fiber filter)

  · Fault phase protection, overload protection, air pressure monitoring and temperature monitoring devices

  Anti static filter element

  · Explosion-proof fan

  · Explosion-proof solenoid valve

  · Explosion-proof electronic control box

  · Pressure differential gauge

  · Muffler
